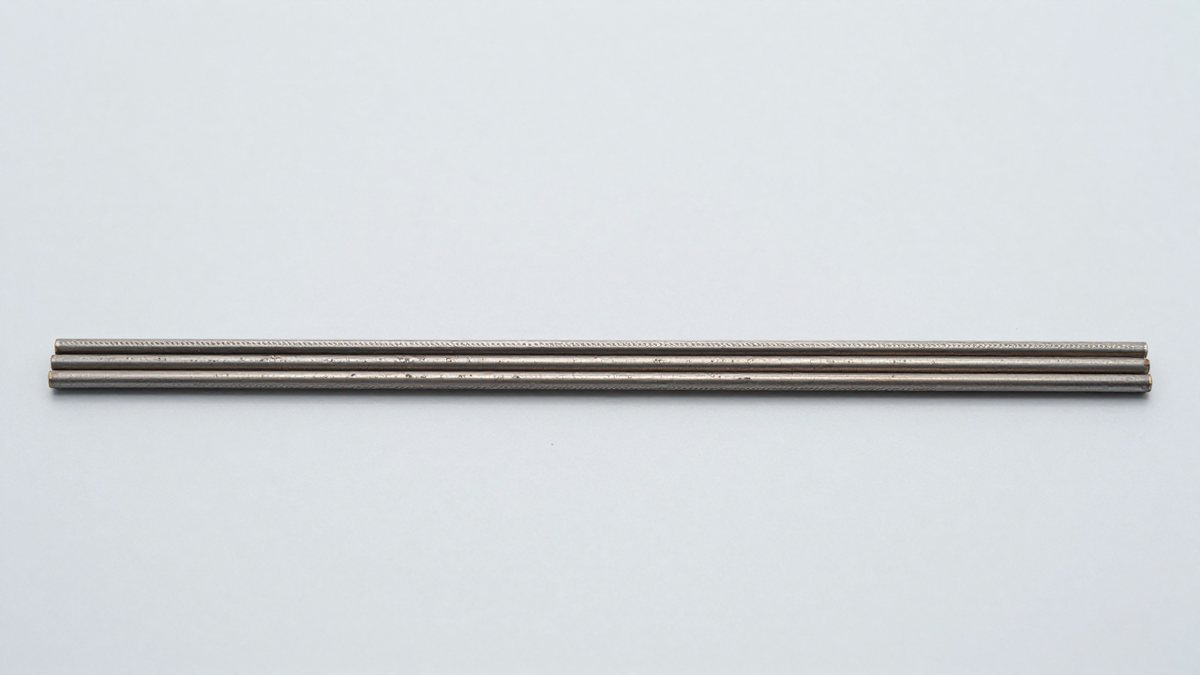

Best Mild Steel TIG Rods: Filler Metal Sizes and Uses
For most mild-steel TIG work, choose ER70S-2 for clean steel and precise, low-contamination welds, or ER70S-6 when the joint has light mill scale or surface rust that cannot be fully removed. Select rod diameter to suit the base-metal thickness and weld-pool size—not simply the diameter of the tungsten.
ER70S-2 vs. ER70S-6: Which rod fits your job?
Both are common carbon-steel TIG filler metals with a nominal 70,000-psi minimum tensile strength classification. Their main practical difference is deoxidizer content. ER70S-6 contains more silicon and manganese than ER70S-2, helping it tolerate some surface oxidation and producing a fluid, wetting puddle. ER70S-2 uses a combination of deoxidizers, including aluminum, titanium, and zirconium, and is often preferred for clean material and applications where controlling weld-metal chemistry matters.
As an Amazon Associate we earn from qualifying purchases at no extra cost to you.
Neither rod makes dirty steel safe to weld. Oil, paint, galvanizing, heavy rust, and thick scale still need to be removed; contamination can cause porosity, defects, or hazardous fumes. For critical structural or pressure work, follow the applicable welding procedure and filler-metal requirements rather than choosing by convenience.
| Filler metal | Common diameters | Deoxidizer comparison | Best fit | Practical limitation |
|---|---|---|---|---|
| ER70S-2 | 1/16 in (1.6 mm), 3/32 in (2.4 mm), 1/8 in (3.2 mm) | Multiple deoxidizers; generally lower silicon than ER70S-6 | Clean, prepared steel; thin parts; controlled, precise work | Does not replace proper cleaning of scale, rust, or coatings |
| ER70S-6 | 1/16 in (1.6 mm), 3/32 in (2.4 mm), 1/8 in (3.2 mm) | Higher silicon and manganese deoxidizer content | General fabrication; clean steel or light residual mill scale | More deoxidizer is not a license to weld through heavy contamination |
These are commonly available nominal diameters; exact selections vary by manufacturer. Check the package label for the AWS classification and diameter before buying. A carbon steel TIG rod is not interchangeable with stainless or aluminum filler simply because the rods look similar.
Choose by steel thickness and puddle control
A useful starting point is to choose filler roughly comparable to the thickness of the material, then adjust for joint design, heat input, and welding position. A smaller rod is easier to feed into a small puddle on thin sheet. A larger rod adds metal more quickly to a wider, hotter weld pool. The ranges below are starting points, not fixed rules.
| Base-metal thickness | Starting filler diameter | Typical situation |
|---|---|---|
| About 0.8–1.5 mm (0.030–0.060 in) | 1/16 in (1.6 mm) | Thin sheet, small brackets, light tubing |
| About 1.5–3 mm (0.060–0.120 in) | 1/16 in (1.6 mm) or 3/32 in (2.4 mm) | General light fabrication; choose smaller for tight, controlled welds |
| About 3–6 mm (0.120–0.250 in) | 3/32 in (2.4 mm) | Brackets, plate, and thicker tubing |
| Over about 6 mm (0.250 in) | 3/32 in (2.4 mm) or 1/8 in (3.2 mm) | Heavier joints, often with beveling or multiple passes |
For example, on 2 mm clean sheet, 1/16-inch ER70S-2 is a sensible starting choice: it is small enough to feed without adding metal faster than the puddle can accept it. If the same thickness is a slightly wider joint or you want a larger deposit, 3/32-inch rod may be more comfortable. On 5 mm plate, 3/32-inch ER70S-6 is a common starting point; joint preparation and pass count matter more than simply moving to a thicker rod.
Pick the rod by surface condition and work style
- Clean, freshly ground steel or thin precision work: Start with ER70S-2. It is a strong general choice when you can prepare the joint well and want controlled filler addition.
- General fabrication with light residual mill scale: ER70S-6 offers more deoxidizing capacity and is often the practical choice. Removing scale at the weld zone is still preferable for consistent results.
- Unknown, rusty, painted, oily, or coated steel: Stop and identify and prepare the material first. Remove contaminants using an appropriate method; do not use filler selection as a substitute for cleaning.
- Thin material or small puddles: Choose 1/16-inch rod to reduce the chance of overfeeding filler and chilling the puddle.
- Thicker joints or larger deposits: Consider 3/32-inch or 1/8-inch rod, while matching the welding procedure and joint preparation.
What to check before buying
Look for the full ER70S-2 or ER70S-6 classification, the diameter, and a package that keeps the rods clean and dry. Buy a diameter you can feed steadily: a larger rod is not automatically faster if it disrupts torch access or makes puddle control difficult. For occasional repairs, a small, sealed package in one or two useful sizes reduces the chance of rods collecting shop grime. For frequent fabrication, keeping both 1/16-inch and 3/32-inch on hand covers many common mild-steel jobs.
Keep filler rods away from oil, grinding dust, and moisture. Wipe off handling residue before welding, and store unused rods in their original packaging or a clean, dry container. Dirty filler can introduce contamination even when the base metal has been prepared carefully.
Common mistakes that cost time
- Welding through mill scale because the rod is ER70S-6: Its higher deoxidizer content can help with light residual scale, but heavy scale can still impair weld quality. Clean the joint where practical.
- Using oversized filler on thin sheet: Excess filler can cool the puddle and encourage poor tie-in. Move to a smaller rod or adjust technique rather than forcing a large rod into a small pool.
- Choosing by tungsten diameter alone: Tungsten carries current; filler supplies metal. Their sizes do not need to match.
- Mixing up mild-steel and stainless filler: Confirm the classification. Use the filler specified for the base metal and application.
For a dependable first choice, stock 1/16-inch ER70S-2 for clean, thin steel and 3/32-inch ER70S-6 for general fabrication. Add 1/8-inch rod when your work regularly involves thicker sections or larger weld deposits.
